51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty

  • 51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty
  • 51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty
  • 51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty
  • 51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty
  • 51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty
  • 51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty
Place of Origin GUANGDONG,CHINA
Brand Name GUOAN
Certification CE,UN38.3,MSDS,ect.
Model Number GA-Y40KW
Price Negotiable
Packaging Details Wooden pallets, cartons, foam, plastic wrap,ect. You can also customize it.
Delivery Time 7-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union,ect.
Supply Ability Semi-automated Custom Manufacturer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Battery Voltage 51.2V Power/Capacity 40KW/800Ah
Inverter Custom (Built-in Or Without) Battery Type LiFePO4 3.2v
Quality Long Life Batteries BMS Built-in
Cycle Life >6000 Times OEM/ODM Accepatable Custom
High Light

51.2V Lithium Battery Home Inverter

,

800Ah Lithium Battery Home Inverter

,

Multipurpose All In One Inverter Battery
Leave a Message
Product Description

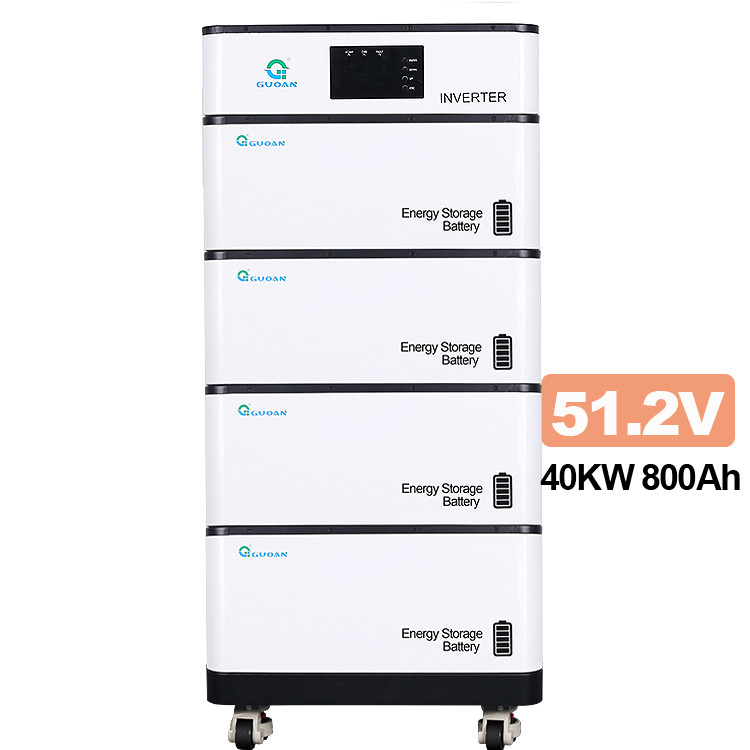

51.2V 40Kw 800Ah LiFePO4 Stacked Home Energy Storage Batteries With Inverter

The 51.2V 40kW 800Ah LiFePO4 storage battery is a high-capacity energy storage solution designed for off-grid solar power storage. It is built with high-quality Lithium Iron Phosphate (LiFePO4) cells and includes a Battery Management System (BMS) for optimal performance and safety.





FEATURES



▶ High capacity: Energy storage batteries with built-in inverters have high storage capacity, enabling them to provide sufficient energy to power household appliances and other electronic devices for extended periods.


▶ LiFePO4 chemistry: The battery pack uses Lithium Iron Phosphate (LiFePO4) chemistry, which is known for its high energy density, long cycle life, and excellent safety performance.


▶ BMS: The battery pack includes a Battery Management System (BMS) that monitors and optimizes the battery pack's performance, ensuring safe and efficient operation.


▶ Modular design: The battery pack is designed to be modular, allowing for easy expansion or replacement as needed to meet changing energy demands.


▶ Multiple safety features: The battery pack includes multiple safety features, such as overcharge and over-discharge protection, short circuit protection, and temperature protection.





SPECIFICATIONS

Nominal Parameters
Battery Type
LiFePO4
Rated Voltage
51.2V
Rated Capacity
800Ah
Rated Energy
40.96KWH
Rated Power
40KW
Dimensions(L×W×H)
530*542*1240mm


ENERGY STORAGE BATTERY

Battery cell
LifePO4 3.2V 200ah
Voltage out of factory
47.8V-49.8V(40-60%)
Cycle life
6000cycles ≥ 80%
Min Cut-off Voltage
40V
Standard charing voltage
58.4V
Inner resistance
≤50mΩ
Standard charging current
0.2C/40A
Standard discharging current
0.2C/40A
Protective functions
over-charing/over-discharging/over-heat/shortcurcuit
Communication port
RS485/CAN/RS232
Working tempreture
Charge(charging):0~60℃
Discharge(charging):-20~60℃



INVERTER

Inverters Rated Power
4KW
5KW
6KW
8KW
10KW
12KW
Maximum PV Charge Current
80A
80A
80A
120A
120A
120A
Maximum PV Array Power
5000W
5000W
5000W
7000W
7000W
7000W
Overcharger Protection

AMG:60V; FLD:62V; USE:CV+4.0V


Maximum Charge Current
40A
50A
60A
70A
80A
100A
Maximum Charge Current (PV+AC)
120A
130A
140A
180A
180A
180A
Net Weight (Solar CHG)
38kg
41kg
45kg
64kg
66kg
75kg
Typical Transfer Time
10ms
10ms
10ms
10ms
10ms
10ms
inverters AC Input Voltage
104V-110V-115V-120VAC/ 208V-220V-230V-240VAC Optional
Monitoring Option
WIFI or GPRS
Output Frequency
50Hz/60Hz ±0.1Hz
MPPT Operating Voltage
60-145VDC
Maximum PV Array Open
Circuit Voltage
150VDC





FUNCTION

51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty 0

Energy Storage With Inverter



The battery pack stores energy for use during periods of high demand or when the main power source is unavailable.










51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty 1

Good-looking Appearance



With power display panel and weak current switch

51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty 2

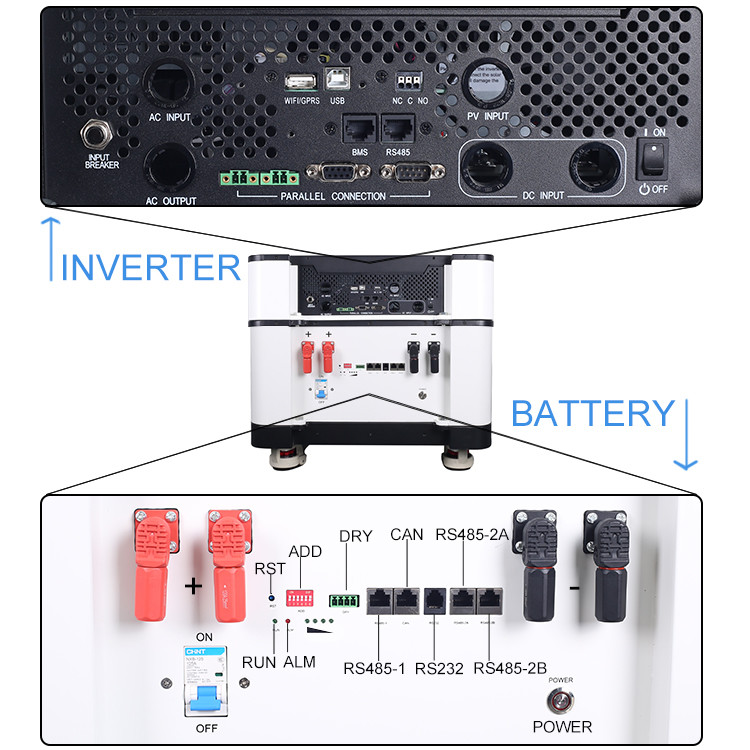

Communication Port



The battery pack can be used to shift energy consumption to off-peak periods, reducing energy costs.You can also custom them,pls contact us.
51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty 3

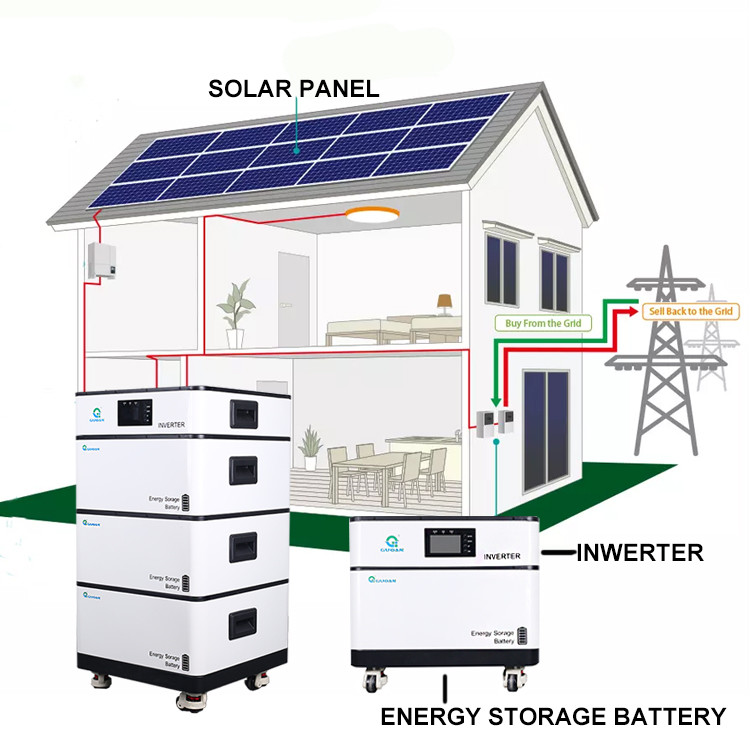

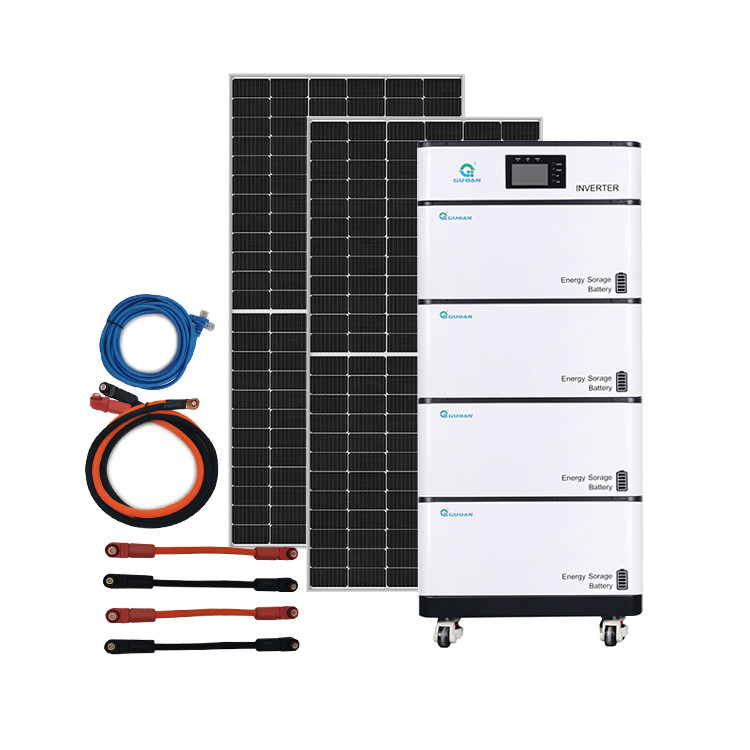

Solar Energy Storage System



You can also choose to customize a complete solar energy storage system for your home office and other places





APPLICATIONS



This energy storage system is ideal for a wide range of residential and commercial applications, including:

● Backup power systems for homes or businesses
● Energy storage systems for renewable energy systems, such as solar or wind power
● Grid-tied energy storage systems for reducing electricity bills and peak demand charges
● Off-grid energy storage systems for remote locations

● Remote cabins or vacation homes
● Emergency backup power for homes in areas with frequent power outages
● Sustainable living in areas without access to the grid

51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty 4





CUSTOM FACTORY



We are a customized manufacturer, with a professional R & D design team and automated production lines.

We support one-to-one customization and can give you a satisfactory design according to the use.



51.2V 800Ah Lithium Battery Home Inverter Deep Cycle Lifetime Warranty 5
