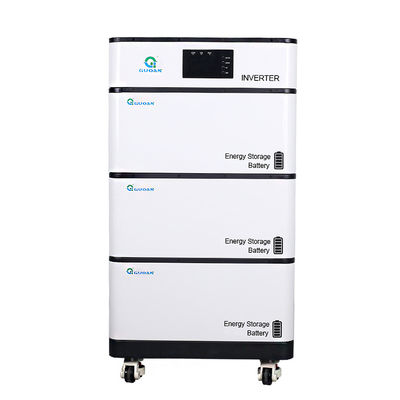

Stackable Lithium Battery Home Inverter Solar Power Storage And Converting
| Place of Origin | Dongguan,Guangdong,China |
|---|---|
| Brand Name | GUOAN |
| Certification | MSDS IEC ROHS UN38.3 ect. |
| Model Number | GA-Y30KW |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | Wooden pallets, cartons, foam, plastic wrap,ect. You can also customize it. |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union,ect. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 51.2V/48V | Rated Power | 30KW |
|---|---|---|---|
| Capacity | 600Ah | Name | Home Energy Storage Battery With Inverter |
| Energy | 30.72KWH | Inverter | Built-in Inverter Or Without |
| Cycle Life | 6000cycles ≥ 80% | Size | 530*542*1000mm |
| Weight | 360kg | OEM&ODM | Support |
| High Light | Stackable Lithium Battery Home Inverter,Lithium Battery Home Inverter Solar Power,600Ah All In One Storage System |
||
Product Description
51.2v 30Kwh All-In-One Stackable Lifepo4 Home Energy Storage Battery With Inverter
Function:
- Over charge voltage protection
- Over discharge voltage protection
- Over temperature protection
- Over current protection
- Over voltage protection
- Short circuit protection
- Polar reverse protection
- Balanced power
- Built in BMS management system
- With or without inverter
Specifications:
|
Model NO |
GA-Y5KW |
GA-Y10KW |
GA-Y15KW |
GA-Y20KW |
GA-Y30KW |
GA-Y40KW |
GA-Y50KW |
|
Rated Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
|
Rated Capacity |
100Ah |
200Ah |
300Ah |
400Ah |
600Ah |
800Ah |
1000Ah |
|
Rated Power |
5KW |
10KW |
15KW |
20KW |
30KW |
40KW |
50KW |
|
Energy |
5.23KWH |
10.32KWH |
15.54KWH |
20.48KWH |
30.72KWH |
40.96KWH |
51.2KWH |
|
Max Continouse Charging Current |
100A |
100A |
100A |
100A |
100A |
100A |
100A |
|
Dimensions(L×W×H) mm |
540*535*463 |
540*535*510 |
540*535*640 |
540*535*752 |
530*542*1000 |
530*542*1240 |
530*542*1480 |
|
Weight |
50KG |
60KG |
120KG |
240KG |
360KG |
480KG |
600KG |
|
Battery Cell |
LifePO4 3.2V 200Ah |
||||||
|
Voltage Out of Factory |
47.8V-49.8V(40-60%) |
||||||
|
Cycle Llife |
6000cycles ≥ 80% |
||||||
|
Min Cut-off Voltage |
40V |
||||||
|
Standard Charing Voltage |
58.4V |
||||||
|
Inner Resistance |
≤50mΩ |
||||||
|
Standard Charging Current |
0.2C/40A |
||||||
|
Standard Discharging Current |
0.2C/40A |
||||||
|
Protective Functions |
over-charing/over-discharging/over-heat/shortcurcuit |
||||||
|
Communication Port |
RS485/CAN/RS232 |
||||||
|
Working Tempreture |
Charge(charging):0~60℃ |
||||||
|
Discharge(charging):-20~60℃ |
|||||||
|
Inverters |
4KW,5KW,6KW,8KW,10KW,12KW Optional |
||||||
|
Inverters AC Input Voltage |
100V-110V-120V-208V-220V-230V-240V AC Optional |
||||||
Notices:
● Rated power 4KW to 12KW,with DSP control
● Pure sine wave AC output
● Built-in MPPT solar charge controller
● Low frequency with transformer/High frequency
● Configurable AC/ solar input priority via LCD setting Compatible to mains voltage or generator power
● WIFI/GPRS remote monitoring
● RS485/CAN communication for BMS
● DPS digital control technology, double transform online design, using input PFC technology, input efficiency up to 99%, high efficiency inverter topology, input efficiency is higher.
● The battery balancing function optimizes battery performance and prolongs battery power
● Built in 80A-120A MPPT solar charger, with higher energy storage efficiency.
● Inverters Max imum parallel 9 sets
● Combination and intelligent load
● Commercial power/photovoltaic/battery/multi-mode optimal input
● Energy storage battery has a single layer of 10KW, which can be stacked freely.
● Energy storage battery and inverter are integrated, without matching problems.
● Battery cell adopts LifePO4 with high quality, long life and more safety.
Applications:
Our Factory:
We are a customized manufacturer, with a professional R & D design team and automated production lines.
We support one-to-one customization and can give you a satisfactory design according to the use.
