Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter

  • Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter
  • Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter
  • Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter
  • Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter
  • Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter
Place of Origin GUANGDONG,CHINA
Brand Name GUOAN
Certification CE/ FCC/ UN38.3/ Ect.
Model Number GA-Y20KW
Price Negotiable
Packaging Details Wooden pallets, cartons, foam, plastic wrap,ect. You can also customize it.
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability Semi-automated Custom Manufacturer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 20KW Voltage 48V/51.2V
Item Name Energy Storage Battery With Inverter Battery Type Lithium Ion, LiFePO4
Battery Type LiFePO4 Long Cycle Life 2000 Times
Rated Capacity 400A Application Household Solar System,ect.
OEM&ODM YES Port Shenzhen
High Light

Deep Cycle 48V 200Ah Battery

,

LiFePO4 48V 200Ah Battery

,

Stable Lithium Battery Home Inverter
Leave a Message
Product Description

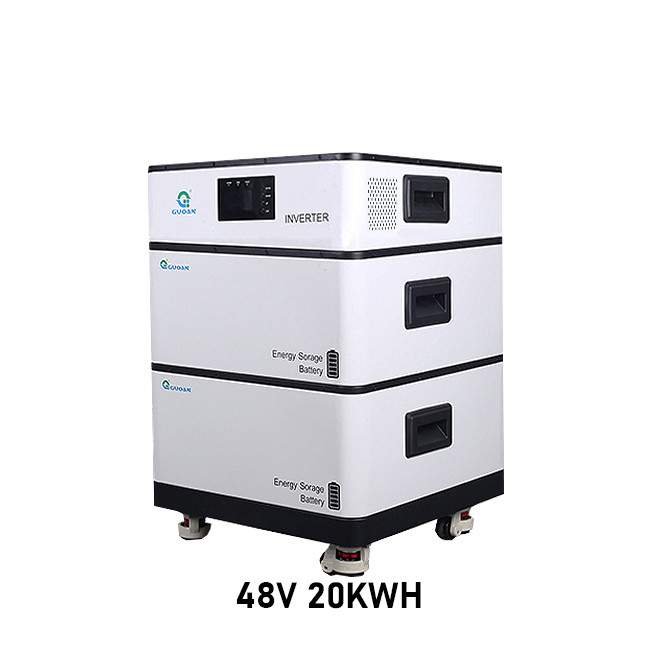

48V 20kWh LiFePO4 Battery Inverter Solar Power Lithium Energy Storage Pack



An energy storage battery with a built-in inverter is a device that combines the functions of a battery and an inverter in a single unit. It is designed to store electrical energy and convert it into usable AC power to power household appliances and other electronic devices. The battery and inverter are integrated into a single unit, making it a convenient and compact solution for energy storage and power generation.This is a high-capacity and high-performance energy storage system designed for residential and commercial use. This system includes a LiFePO4 battery, an inverter, and a solar charge controller, providing a complete energy storage solution.





FEATURES



▶ High-capacity battery: The system includes a 48V 20kWh LiFePO4 battery, which provides reliable and long-lasting power for your home or business.



▶ Inverter: The system includes a high-efficiency inverter, which converts the DC power from the battery into AC power for use in your home or business.



▶ Solar charge controller: The system includes a solar charge controller, which regulates the amount of power from the solar panels that is used to charge the battery.

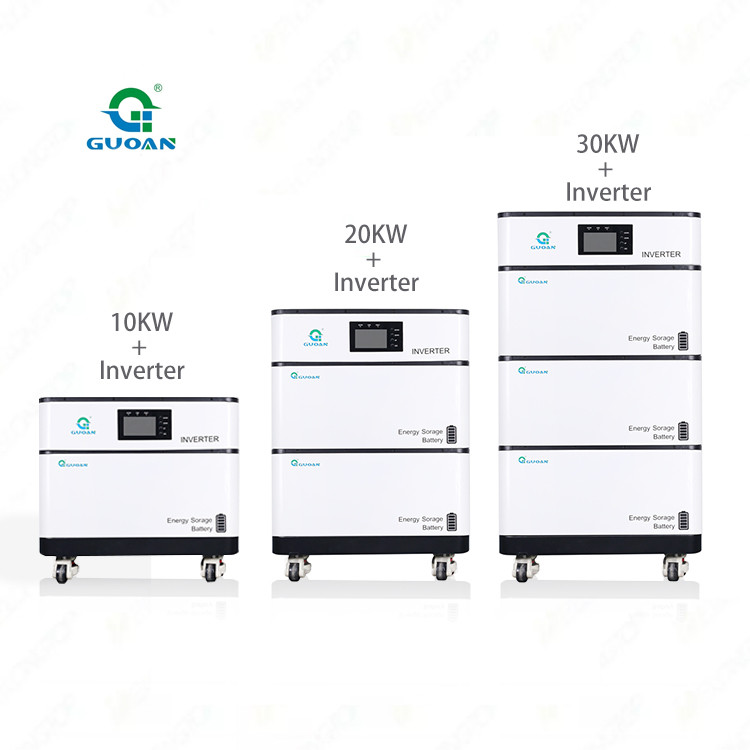

▶ Stackable design: The system is designed to be stacked, which means you can connect multiple systems together to increase the overall capacity.



▶ Advanced safety features: The system is designed with multiple safety features, including overcharge protection, over-discharge protection, and short circuit protection.





SPECIFICATIONS



Nominal Parameters
Battery Type
LiFePO4
Rated Voltage
48V
Rated Capacity
400Ah
Rated Energy
20.48KW
Rated Power
20KW
Max continouse charging current
100A
Dimensions(L×W×H)
530*542*760mm






ENERGY STORAGE BATTERY



Battery cell
LifePO4 3.2V 200ah
Voltage out of factory
47.8V-49.8V(40-60%)
Cycle life
6000cycles ≥ 80%
Min Cut-off Voltage
40V
Standard charing voltage
58.4V
Inner resistance
≤50mΩ
Standard charging current
0.2C/40A
Standard discharging current
0.2C/40A
Protective functions
over-charing/over-discharging/over-heat/shortcurcuit

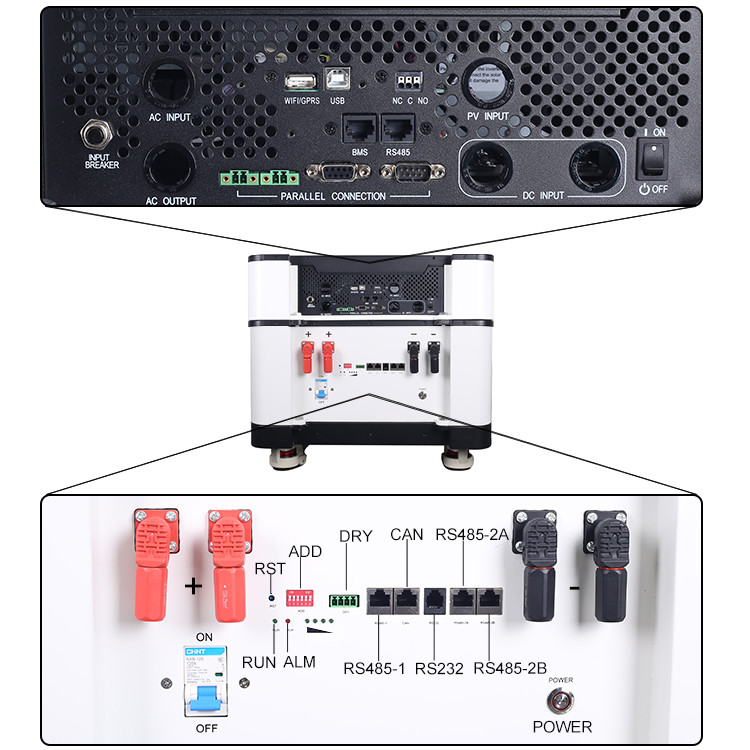

Communication port
RS485/CAN/RS232
Working tempreture
Charge(charging):0~60℃
Discharge(charging):-20~60℃





INVERTER



Inverters Rated Power
4KW
5KW
6KW
8KW
10KW
12KW
Maximum PV Charge Current
80A
80A
80A
120A
120A
120A
Maximum PV Array Power
5000W
5000W
5000W
7000W
7000W
7000W
Overcharger Protection

AMG:60V; FLD:62V; USE:CV+4.0V


Maximum Charge Current
40A
50A
60A
70A
80A
100A
Maximum Charge Current (PV+AC)
120A
130A
140A
180A
180A
180A
Net Weight (Solar CHG)
38kg
41kg
45kg
64kg
66kg
75kg
Typical Transfer Time
10ms
10ms
10ms
10ms
10ms
10ms
inverters AC Input Voltage
104V-110V-115V-120VAC/ 208V-220V-230V-240VAC Optional
Monitoring Option
WIFI or GPRS
Output Frequency
50Hz/60Hz ±0.1Hz
MPPT Operating Voltage
60-145VDC
Maximum PV Array Open
Circuit Voltage
150VDC





FUNCTION

Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter 0

Energy Storage:

The battery pack stores energy for use during periods of high demand or when the main power source is unavailable.











Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter 1

Load Shifting:

The battery pack can be used to shift energy consumption to off-peak periods, reducing energy costs.
Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter 2





Backup Power:

The battery pack provides backup power in the event of a power outage or other emergency situations.





APPLICATIONS



This energy storage system is ideal for a wide range of residential and commercial applications, including:

● Backup power systems for homes or businesses
● Energy storage systems for renewable energy systems, such as solar or wind power
● Grid-tied energy storage systems for reducing electricity bills and peak demand charges
● Off-grid energy storage systems for remote locations

Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter 3





CUSTOM FACTORY



We are a customized manufacturer, with a professional R & D design team and automated production lines.

We support one-to-one customization and can give you a satisfactory design according to the use.



Deep Cycle 48V 200Ah Battery , Customize Lithium Battery Home Inverter 4
