Energy Storage Lithium Battery Home Inverter On Off Grid System

  • Energy Storage Lithium Battery Home Inverter On Off Grid System
  • Energy Storage Lithium Battery Home Inverter On Off Grid System
  • Energy Storage Lithium Battery Home Inverter On Off Grid System
  • Energy Storage Lithium Battery Home Inverter On Off Grid System
  • Energy Storage Lithium Battery Home Inverter On Off Grid System
  • Energy Storage Lithium Battery Home Inverter On Off Grid System
Place of Origin GUANGDONG,CHINA
Brand Name GUOAN
Certification CE/ UL/ UN38.3/ Ect.
Model Number GA-Y5KW
Price Negotiable
Packaging Details Wooden pallets, cartons, foam, plastic wrap,ect. You can also customize it.
Delivery Time 7-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability Semi-automated Custom Manufacturer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Energy Storage Battery With Inverter Rated Power 5KW
Voltage 48V/Custom Battery Type LiFePO4 Battery
Inverter Built-in Inverter Cycle Life 6000 Times
BMS Built-in BMS Protection OEM/ODM Accepatable
High Light

OEM Lithium Battery Home Inverter

,

Stable Lithium Battery Home Inverter

,

Three Phase Inverter Energy Storage
Leave a Message
Product Description

Household 48V 100Ah 5Kw Lifepo4 All In One Battery Lithium Ion Hybrid Three Phase Inverter Energy Storage



The all-in-one battery is a complete energy storage solution designed for residential and commercial use. It combines a high-capacity LiFePO4 battery pack with a hybrid three-phase inverter to provide reliable and efficient power for a wide range of electrical devices.





FEATURES



▶ High capacity: The 48V 100Ah battery pack has a high capacity, providing ample power for household and commercial applications.


▶ LiFePO4 chemistry: The battery pack uses Lithium Iron Phosphate (LiFePO4) chemistry, which is known for its high energy density, long cycle life, and excellent safety performance.


▶ Integrated design: The battery pack and hybrid inverter are integrated into a single unit, allowing for easy installation and operation.


▶ Hybrid three-phase inverter: The system includes a hybrid three-phase inverter, which can be used to convert DC power from the battery pack into AC power for use with electrical devices.


▶ Multiple safety features: The battery pack includes multiple safety features, such as overcharge and over-discharge protection, short circuit protection, and temperature protection.





SPECIFICATIONS

Nominal Parameters
Battery Type
LiFePO4
Rated Voltage
48V
Rated Capacity
100Ah
Rated Energy
5.23KWH
Rated Power
5KW
Max continouse charging current
100A

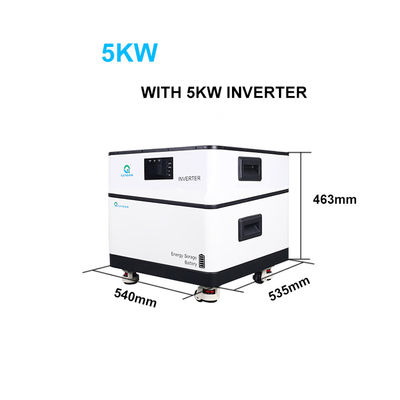

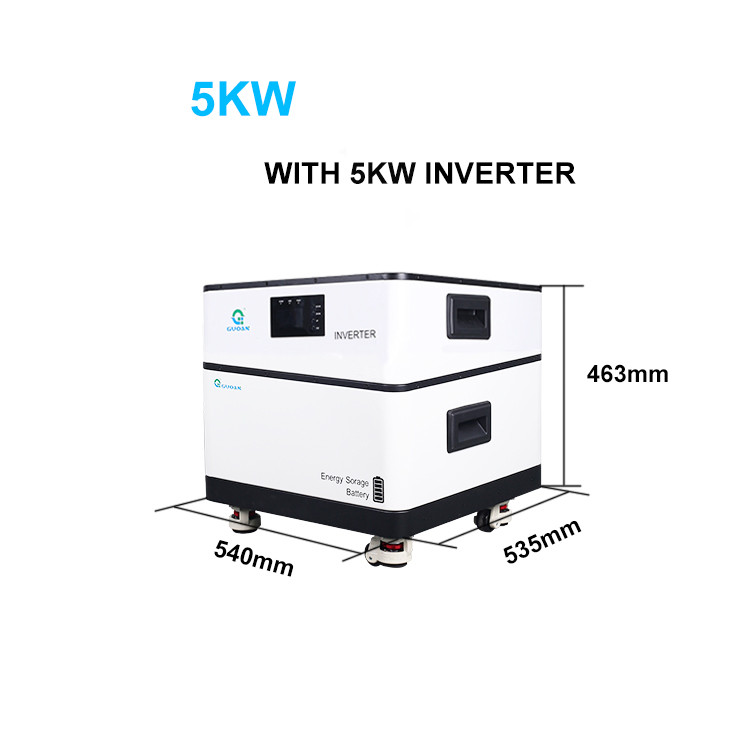

Dimensions(L×W×H)
540*535*463mm


ENERGY STORAGE BATTERY

Battery cell
LifePO4 3.2V 200ah
Voltage out of factory
47.8V-49.8V(40-60%)
Cycle life
6000cycles ≥ 80%
Min Cut-off Voltage
40V
Standard charing voltage
58.4V
Inner resistance
≤50mΩ
Standard charging current
0.2C/40A
Standard discharging current
0.2C/40A
Protective functions
over-charing/over-discharging/over-heat/shortcurcuit
Communication port
RS485/CAN/RS232
Working tempreture
Charge(charging):0~60℃
Discharge(charging):-20~60℃



INVERTER

Inverters Rated Power
4KW
5KW
6KW
8KW
10KW
12KW
Maximum PV Charge Current
80A
80A
80A
120A
120A
120A
Maximum PV Array Power
5000W
5000W
5000W
7000W
7000W
7000W
Overcharger Protection

AMG:60V; FLD:62V; USE:CV+4.0V


Maximum Charge Current
40A
50A
60A
70A
80A
100A
Maximum Charge Current (PV+AC)
120A
130A
140A
180A
180A
180A
Net Weight (Solar CHG)
38kg
41kg
45kg
64kg
66kg
75kg
Typical Transfer Time
10ms
10ms
10ms
10ms
10ms
10ms
inverters AC Input Voltage
104V-110V-115V-120VAC/ 208V-220V-230V-240VAC Optional
Monitoring Option
WIFI or GPRS
Output Frequency
50Hz/60Hz ±0.1Hz
MPPT Operating Voltage
60-145VDC
Maximum PV Array Open
Circuit Voltage
150VDC





FUNCTION

Energy Storage Lithium Battery Home Inverter On Off Grid System 0

Energy Storage With Inverter



The battery pack stores energy for use during periods of high demand or when the main power source is unavailable.











Energy Storage Lithium Battery Home Inverter On Off Grid System 1

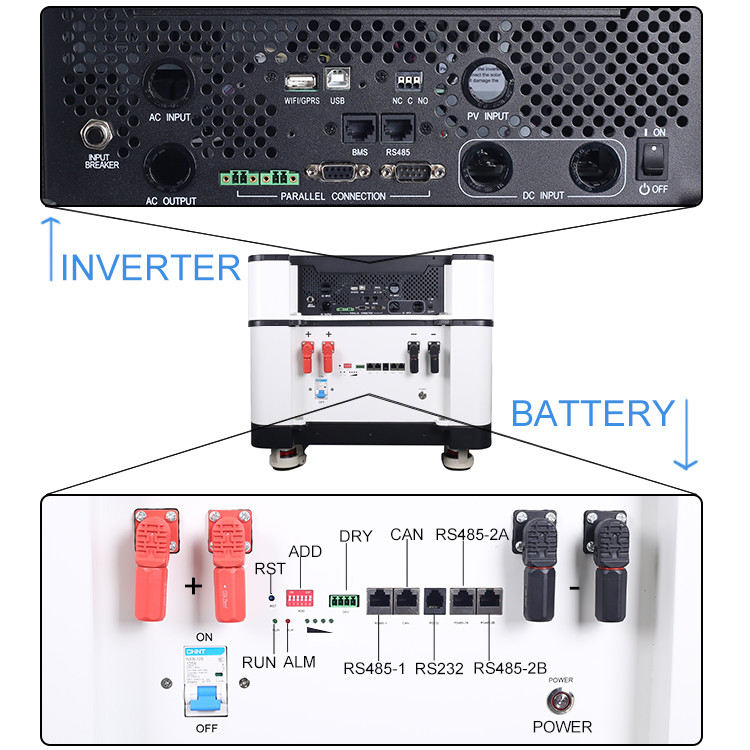

Communication Port



The battery pack can be used to shift energy consumption to off-peak periods, reducing energy costs.You can also custom them,pls contact us.
Energy Storage Lithium Battery Home Inverter On Off Grid System 2





Backup Power



The battery pack provides backup power in the event of a power outage or other emergency situations.
Energy Storage Lithium Battery Home Inverter On Off Grid System 3

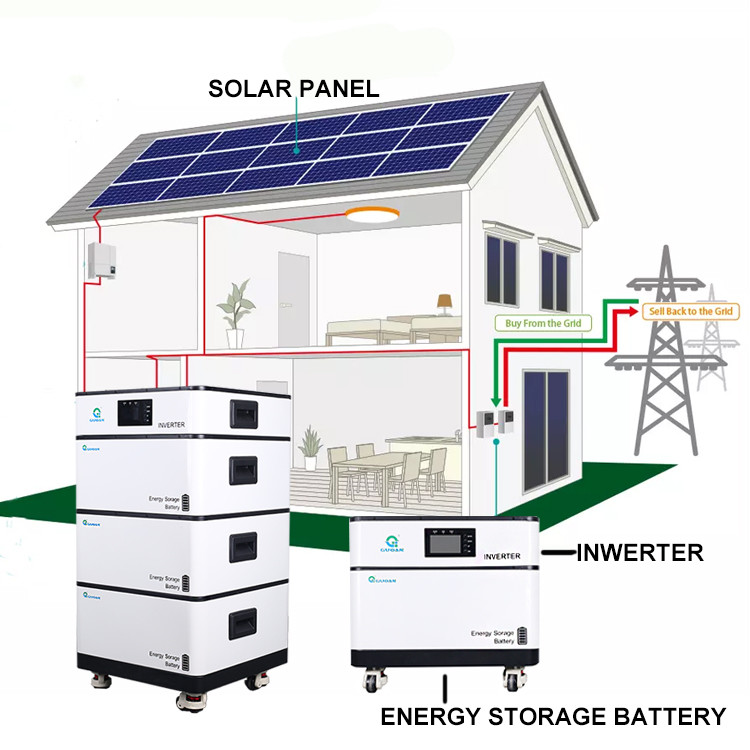

Solar Energy Storage System



You can also choose to customize a complete solar energy storage system for your home office and other places





APPLICATIONS



This energy storage system is ideal for a wide range of residential and commercial applications, including:

● Backup power systems for homes or businesses
● Energy storage systems for renewable energy systems, such as solar or wind power
● Grid-tied energy storage systems for reducing electricity bills and peak demand charges
● Off-grid energy storage systems for remote locations

● Remote cabins or vacation homes
● Emergency backup power for homes in areas with frequent power outages
● Sustainable living in areas without access to the grid

Energy Storage Lithium Battery Home Inverter On Off Grid System 4

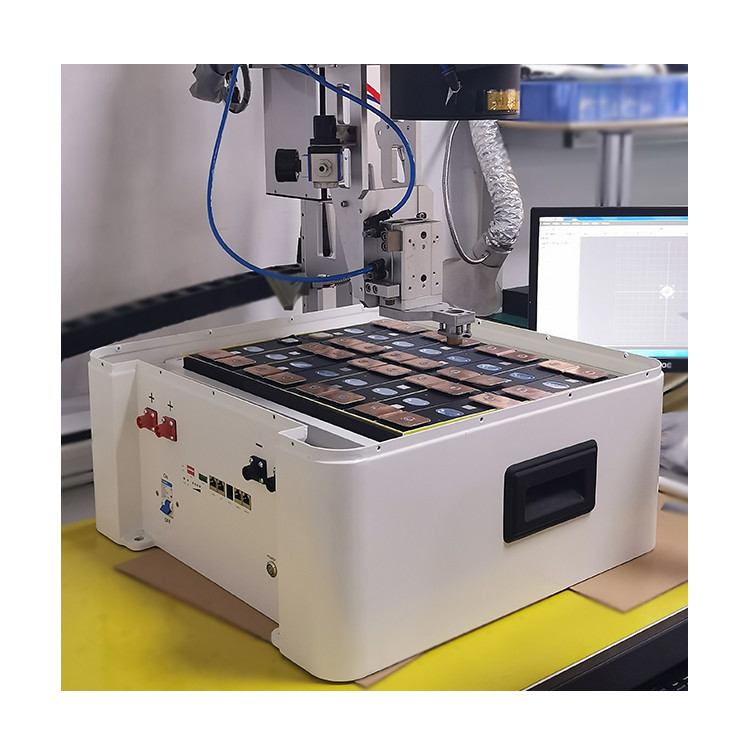

CUSTOM FACTORY



We are a customized manufacturer, with a professional R & D design team and automated production lines.

We support one-to-one customization and can give you a satisfactory design according to the use.



Energy Storage Lithium Battery Home Inverter On Off Grid System 5
