Residential Solar Powerwall Battery , 51.2V Solar Power Batteries For Home

Place of Origin GUANGDONG,CHINA
Brand Name GUOAN
Certification CE,UN38.3,MSDS,ect.
Model Number GA-LA10KW
Price Negotiable
Packaging Details Customized
Delivery Time 7-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union,ect.
Supply Ability Semi-automated Custom Manufacturer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 51.2V Battery Power 10Wh
Product Name Upright Energy Storage Battery For Household Battery Type LiFePO4
Communication Port RS485/CAN/RS232 Capacity 200Ah
Size(W/D/H) 560*230*640mm Cycle Life 2000cycles ≥ 80%
OEM/ODM Warmly Welcomed Protection Over-charing/over-discharging/over-heat/shortcurcuit
Port Shenzhen Weight 60kg
High Light

Movable Solar Powerwall Battery

,

Portable Solar Powerwall Battery

,

51.2V Solar Power Batteries For Home

Leave a Message
Product Description

Floor Type A Lithium Iron Phosphate 51.2v 10kw 200ah Lifepo4 Energy Storage Battery For Home



This is a Floor Type A Lithium Iron Phosphate Energy Storage Battery with a voltage of 51.2V, a capacity of 10kW, and a capacity of 200Ah. It is designed to provide reliable backup power for residential applications.The battery uses Lithium Iron Phosphate cells to store energy. When connected to a power source, such as solar panels or the grid, the battery charges. When power is needed, the battery discharges and provides electricity to the connected devices.





FEATURES



● High energy density: The Lithium Iron Phosphate battery cells have a high energy density, which means they can store a large amount of energy in a compact space.


● Long lifespan: The battery has a long lifespan of up to 8-10 years, making it a reliable investment for long-term energy storage needs.


● Fast charging: The battery can be charged quickly, allowing for faster turnaround times in energy storage and usage.


● Floor type A design: The battery has a floor type A design, which makes it easy to install and maintain.

Compact and modular design





SPECIFICATIONS



Nominal Parameters
Appearance
Type A
Battery cell
LifePO4 3.2V 100ah
Rated Voltage
51.2V
Rated Capacity
200Ah
Rated Power
10Wh
Size
560*230*640mm
Basic Parameters
Cycle life
2000cycles ≥ 80%
Discharging Cut-off Voltage
40V
Charing Cut-off Voltage
58.4V
Inner resistance
≤50mΩ
Standard charging and discharging current
0.2C/40A
Max continouse charging and discharging current
100A
Electricity
LED

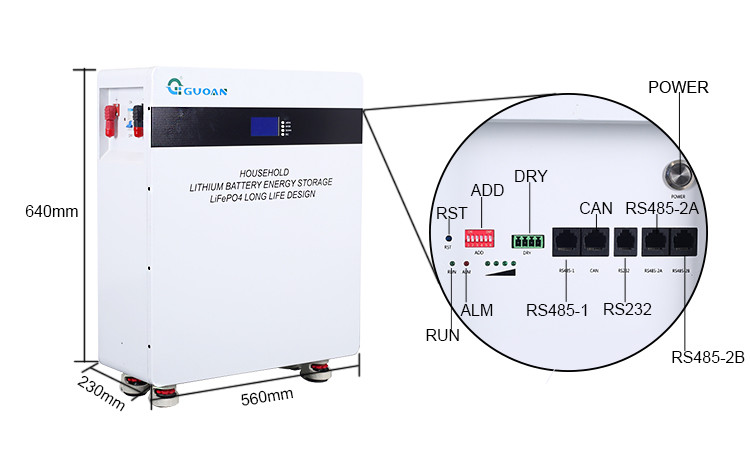

Communication port
RS485/CAN/RS232
Storage temperature
<12 month:-10~45℃



Notices:



● Please read the user manual carefully before using the battery.
● Do not disassemble, crush, puncture, or incinerate the battery.
● Do not expose the battery to high temperatures or direct sunlight for extended periods of time.
● Do not store the battery in a damp or humid environment.
● Do not expose the battery to water or other liquids.
● Do not use or charge the battery near flammable or explosive materials.
● Use only the charger provided by the manufacturer to charge the battery.
● Disconnect the battery from the charger when it is fully charged.
● Do not overcharge or over-discharge the battery.
● Keep the battery out of reach of children and pets.
● If the battery is damaged, leaking, or emits an unusual odor, stop using it immediately and contact the manufacturer for assistance.
● Follow local regulations for the disposal of the battery.
● Failure to follow these guidelines may result in damage to the battery, personal injury, or property damage.





FUNCTION

Residential Solar Powerwall Battery , 51.2V Solar Power Batteries For Home 0

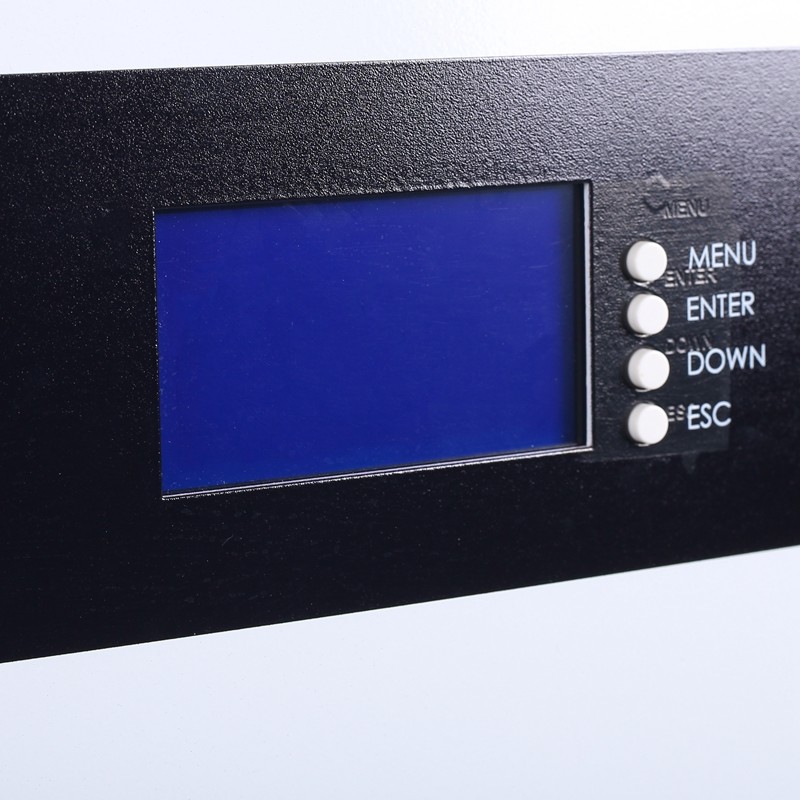

The battery has a built-in LCD display that shows important information such as battery voltage, state of charge, and operating status, making it easy to monitor and manage.

Residential Solar Powerwall Battery , 51.2V Solar Power Batteries For Home 1

- High energy density



- Long cycle life



- Excellent safety and reliability

Residential Solar Powerwall Battery , 51.2V Solar Power Batteries For Home 2

You can also choose to purchase the whole set

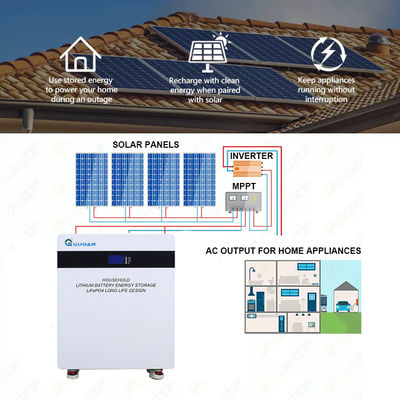

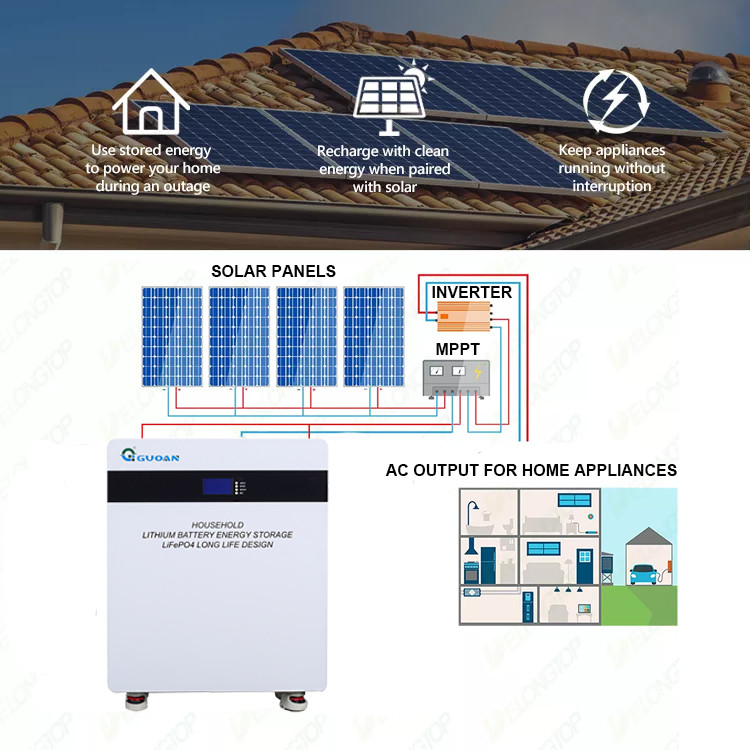

The battery is compatible with a wide range of solar energy systems and can be used with both on-grid and off-grid systems.









APPLICATIONS



This battery is suitable for a variety of applications, such as:



● Residential backup power: The battery can be used to provide backup power for homes during power outages.


● Solar energy storage: The battery can be used to store excess energy generated by solar panels for use when needed.

Residential Solar Powerwall Battery , 51.2V Solar Power Batteries For Home 3





CUSTOM MANUFACTORY



We are a customized manufacturer, with a professional R & D design team and automated production lines.

We support one-to-one customization and can give you a satisfactory design according to the use.



Residential Solar Powerwall Battery , 51.2V Solar Power Batteries For Home 4
