5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted

  • 5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted
  • 5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted
  • 5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted
  • 5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted
  • 5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted
  • 5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted
Place of Origin Dongguan,Guangdong,China
Brand Name GUOAN
Certification MSDS IEC ROHS UN38.3 ect.
Model Number GA-GA5KW
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Wooden pallets, cartons, foam, plastic wrap. You can also customize it.
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability Semi-automated custom manufacturer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wall Mounted Energy Storage Battery-A Voltage 51.2V
Rated Power 5KW Capacity 100Ah
Energy 5.12KWH Battery Cell LiFePO4 3.2v 200Ah
Cycle Life 2000cycles ≥ 80% Size 520*170*650mm
Weight 60kg Application Home,Solar System,home & Outdoor
High Light

5.12KWH Solar Energy Battery Power

,

Solar Energy Battery Power Practical

,

Wall Mounted Solar Battery For House
Leave a Message
Product Description

51.2v 5kwh 100Ah Type A Lifepo4 Wall Mounted Energy Storage Battery For Home

This 5kWh/100Ah Lithium Iron Phosphate (LiFePO4) energy storage battery is designed for household use, featuring a wall-mounted design that saves space and is easy to install.

The battery is designed to store energy from solar panels or the grid, and can be used to power your home during power outages or peak demand periods.





FEATURES



High Capacity Battery: The battery has a capacity of 5kWh/100Ah, providing ample energy storage for your household needs.

Wall-Mounted Design: The battery features a wall-mounted design that saves space and is easy to install.

Safe and Reliable: The battery is made with high-quality LiFePO4 cells that are known for their safety, reliability, and long lifespan.

Smart Battery Management System (BMS): The battery is equipped with a BMS that monitors and controls the battery's performance, ensuring it operates safely and efficiently.

Multiple Protection Features: The battery has multiple protection features, including overcharge protection, over-discharge protection, short circuit protection, and over-temperature protection.





SPECIFICATIONS



Techical Datas Results
Series & Parallel 16S-1P
Battery Cell LifePO4 3.2V 100ah
Rated Voltage 51.2V
Rated Capacity 100Ah
Rated Power 5.12Wh
Voltage Out of Factory 47.8V-49.8V(40-60%)
Cycle Life 2000cycles ≥ 80%
Discharging Cut-off Voltage 40V
Charing Cut-off Voltage 58.4V
Inner Resistance ≤50mΩ
Standard Charging Current 0.2C/40A
Standard Discharging Current 0.2C/40A
Max Continouse Charging Current 100A
Max Continouse Discharging Current 100A
Electricity LED
Protective Functions Over-charing / Over-discharging / Over-heat / Shortcurcuit
Communication Port RS485/CAN/RS232
Working Tempreture Charge(charging):0~60℃
Discharge(charging):-20~60℃
Storage Temperature <12 month:-10~45℃
Size 520*170*650mm
Weight Approx:60kg
You can also choose to purchase the whole set (Solar photovoltaic panel + Energy storage battery + Inverter +Parts)



Notices:



● Rated power 4KW to 12KW,with DSP control
● Pure sine wave AC output
● Built-in MPPT solar charge controller
● Low frequency with transformer/High frequency
● Configurable AC/ solar input priority via LCD setting Compatible to mains voltage or generator power
● WIFI/GPRS remote monitoring
● RS485/CAN communication for BMS
● DPS digital control technology, double transform online design, using input PFC technology, input efficiency up to 99%, high efficiency inverter topology, input efficiency is higher.
● The battery balancing function optimizes battery performance and prolongs battery power
● Built in 80A-120A MPPT solar charger, with higher energy storage efficiency.
● Inverters Max imum parallel 9 sets
● Combination and intelligent load
● Commercial power/photovoltaic/battery/multi-mode optimal input
● Energy storage battery has a single layer of 10KW, which can be stacked freely.
● Energy storage battery and inverter are integrated, without matching problems.
● Battery cell adopts LifePO4 with high quality, long life and more safety.





FUNCTION



5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted 0

5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted 1





APPLICATIONS

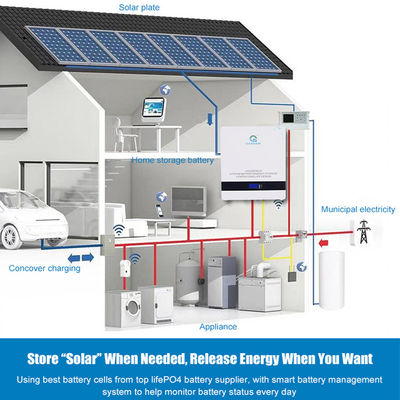

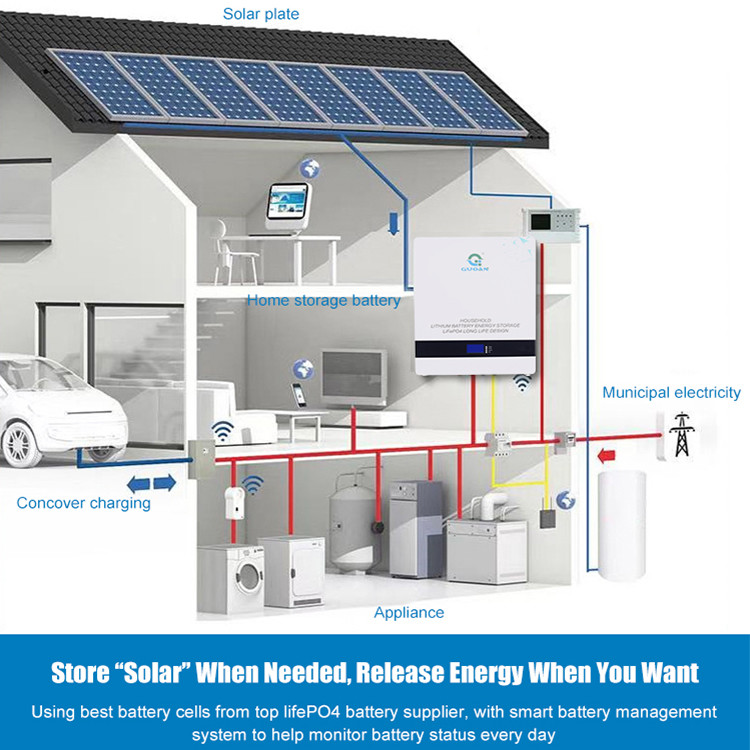

Home Energy Storage: This battery can be used to store energy from solar panels or the grid, providing backup power for your home during power outages or peak demand periods.

Off-Grid Living: This battery can be used as part of an off-grid power system, providing reliable and sustainable power for your home.

Demand Response: This battery can be used to participate in demand response programs, where the grid operator pays you to reduce your energy consumption during peak demand periods.

Overall, this LiFePO4 energy storage battery is a reliable and safe choice for household energy storage, providing backup power and energy management capabilities for your home.

5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted 2





Our Factory:



We are a customized manufacturer, with a professional R & D design team and automated production lines.

We support one-to-one customization and can give you a satisfactory design according to the use.



5.12KWH 100Ah Solar Energy Battery Power Practical GradE A Wall Mounted 3
