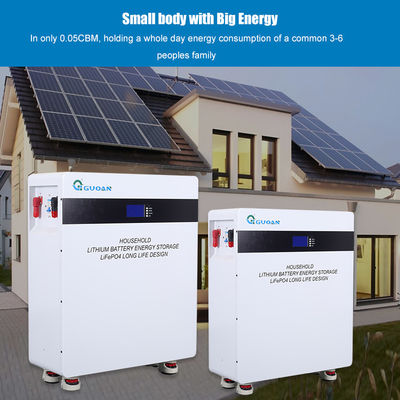

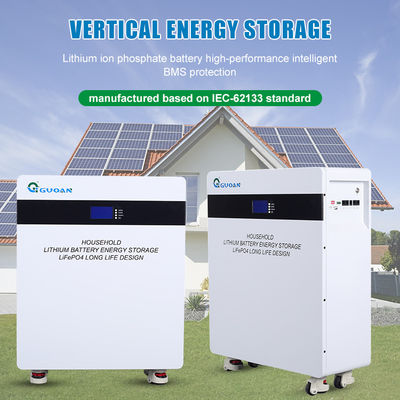

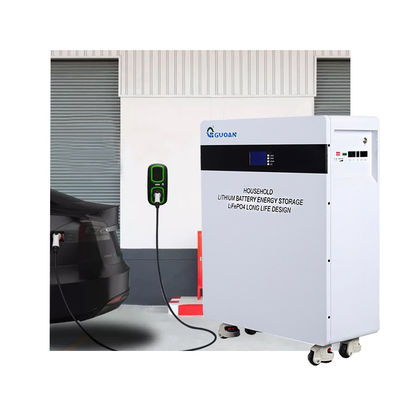

48V 51.2V Solar Energy Battery Power LifePO4 Battery 10KW 200ah For Home Use
| Place of Origin | GUANGDONG,CHINA |
|---|---|
| Brand Name | GUOAN |
| Certification | MSDS/ISO9001/CE-IEC/FCC/U L/BIS |
| Model Number | GA-LB10KW |
| Price | Negotiable |
| Packaging Details | Wooden pallets, cartons, foam, plastic wrap,ect. You can also customize it. |
| Delivery Time | 7-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union,ect. |
| Supply Ability | Semi-automated Custom Manufacturer |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 48V | Power | 10KWh |
|---|---|---|---|
| Product Name | Vertical Energy Storage Battery | Battery Type | LiFePO4 |
| Controller Type | MPPT | Capacity | 200Ah |
| Battery Protection | BMS | Cycle Life | >2000 Times |
| MOQ | 1 Pcs | Warranty | 1-3 Years |
| OEM/ODM | Accepatable | Interface | RS485/RS232/Can/Bus |
| High Light | MSDS Solar Energy Battery Power,Solar Energy Battery Power MPPT,Vertical Solar Batteries For Home |
||
Product Description
|
Model No
|
GA-LB10KW
|
|
|
Nominal Parameters
|
|
|
|
Series & parallel
|
16S-1P
|
|
|
Rated Voltage
|
48V
|
|
|
Rated Capacity
|
200Ah
|
|
|
Rated Power
|
10KW
|
|
|
Max continouse charging current
|
100A
|
|
|
Energy storage+inverters Dimensions(L×W×H)
|
560*230*640mm
|
|
|
Energy storage+inverters
Weight
|
60kg
|
|
|
Basic Parameters
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Battery cell
|
LifePO4 3.2V 200ah
|
|
|
|
|
|
|
|
|
|||||||||
|
Voltage out of factory
|
47.8V-49.8V(40-60%)
|
|
|
|
|
|
|
|
|
|||||||||
|
Cycle life
|
2000cycles ≥ 80%
|
|
|
|
|
|
|
|
|
|||||||||
|
Discharging Cut-off Voltage
|
40V
|
|
|
|
|
|
|
|
|
|||||||||
|
Charing Cut-off Voltage
|
58.4V
|
|
|
|
|
|
|
|
|
|||||||||
|
Electricity
|
LED
|
|
|
|
|
|
|
|
|
|||||||||
|
Inner resistance
|
≤50mΩ
|
|
|
|
|
|
|
|
|
|||||||||
|
Standard charging current
|
0.2C/40A
|
|
|
|
|
|
|
|
|
|||||||||
|
Standard discharging current
|
0.2C/40A
|
|
|
|
|
|
|
|
|
|||||||||
|

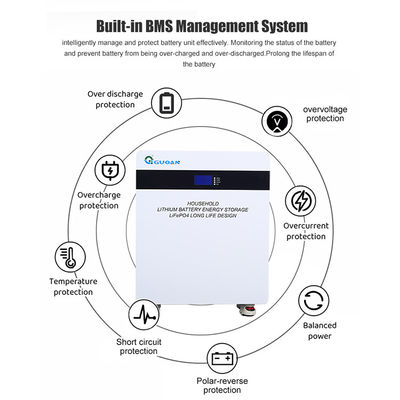

Protective functions
|
over-charing/over-discharging/over-heat/shortcurcuit
|
|
|
|
|
|
|
|
|
|||||||||
|
Communication port
|
RS485/CAN/RS232
|
|
|
|
|
|
|
|
|
|||||||||
|
Working tempreture
|
Charge(charging):0~60℃
Discharge(charging):-20~60℃
|
|
|
|
|
|
|
|
|
|||||||||
Certifications
